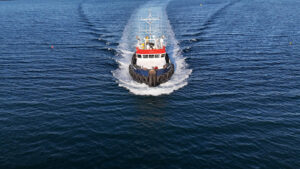

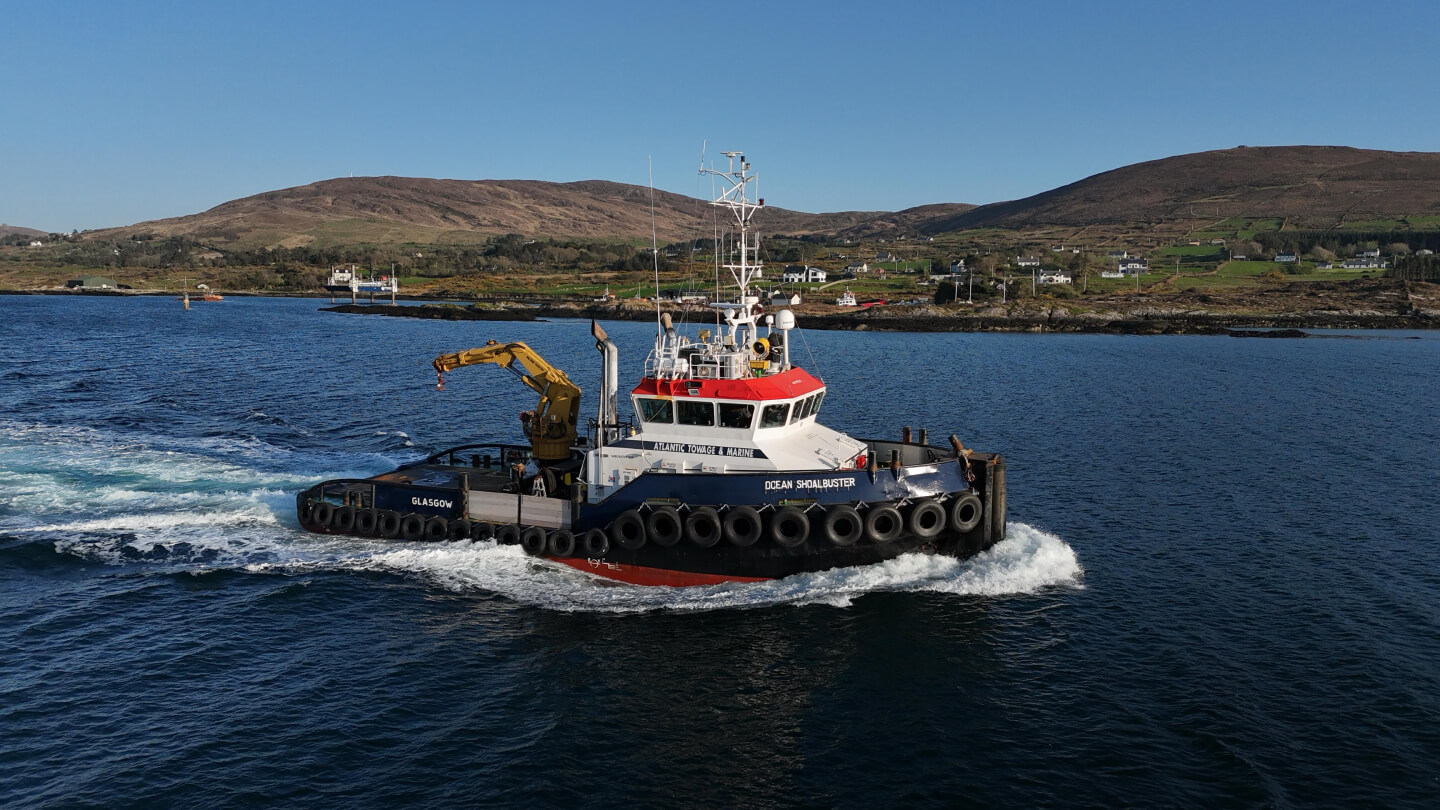

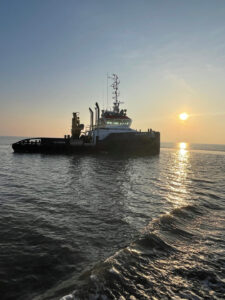

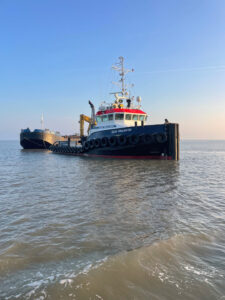

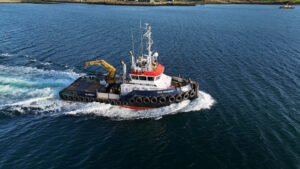

30-ton bollard pull Damen Shoalbuster 2609. Powered by twin Caterpillar C32 engines, it delivers excellent power with a draft of only 2.6m. This vessel offers high manoeuvrability and is ideally suited to a variety of marine operations.
General
Type: Damen Shoalbuster 2609
Built: 2004
Class: Bureau Veritas | 3/3 HULL MCA Category
Flag: UK
Dimensions: 26.21m x 9.lm x 2.6m (draft)
Displacement: 381t (50% consumables)
IMO number: 9341196
Call sign: MGLQ2
Port of registry: Glasgow
Tank Capacities
Fuel oil: 126.8m3
Dirty oil: 3.8m3
Lube oil: 1.6m3
Fresh water: 30.03m3
Bilge water: 3.8m3
Sewage: 2.2m3
Hydraulic oil: 1.6m3
Performance
Bollard pull: 29.5t
Speed: 11.2 knots
Deck
Deck crane: Heila 140tm
Capacity: 26t @ 5.65m, 10t @ 12.25m
AH/towing winch: 47t Ridderinkhof
Tugger winch: 8t @ 4.5m/min
Deck carrying capacity: 46.5t
Clear deck space: 70m2
Stern roller: 4m x 980mm dia
Moonpool: NA
Propulsion
Main engines: 2 x Caterpillar C32, 3508BtA
Total power: 1642 bRW (2200 bhp) at 1600 rpm
Propellers: 2 x 1800 mm Promarin fixed pitch in ‘Optima’ nozzles
Bowthruster: 200 bhp/ 120 bhp, hydraulic
Auxiliary Equipment
Main generator sets: 2 x Cat C4.4/2 x John Deere 4045tF258
Capacity: 2 x 87 kVA, 50 Hz, 230/400V
Hydraulic set: Ix John Deere 6068tF258
Fuel oil separator: Facet MV-II-AG
Transfer pumps: 32m3/hr @1.5 bar (fuel + water)
Navigation Equipment
Searchlights: Pesch I x 1000W, I x 500М
Magnetic compass: Kottertype with electric repeater
Sat. compass: Furuno SC-50
RADAR: 1 x Furuno FR=1505 mkll, 1 x JRC
GPS: Furuno GP-90
Autopilot: Seapilot 75
AIS: Simrad
Echosounder: Furuno FE-700
VHF/DSC: 3 x Sailor RT4822 with DSC
Handheld VHF: 2 x JotrontR20
SSB/DSC: SP-radiotype 5000 with DSC
Navtex: Furuno NX 700
Inmarsat C: Sailor H2095 C
SatellitetV: Intellian
Accommodation
Heated and air-conditioned living spaces for six persons consisting of four single-crew cabins and one double-crew cabin, a galley/mess and sanitary facilities.
